The ultimate piezo scaler technology
Can be used in prophylaxis, periodontology, endodontics and restoration.

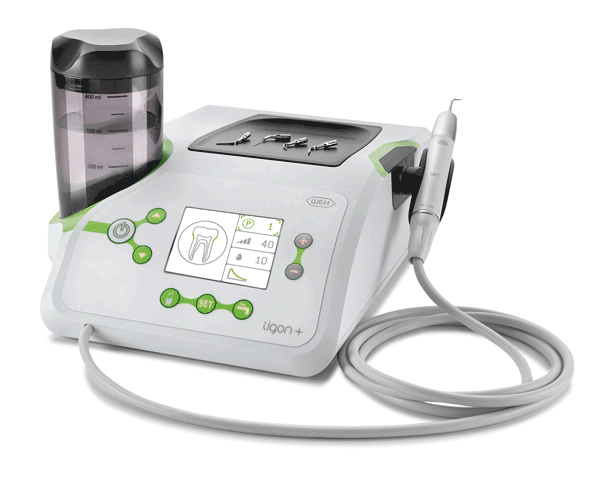

The ultrasonic piezo scaler Tigon+ uses
pleasantly warm fluid and prevents irritation, even in patients with sensitive teeth. Five preset programs save you valuable time. Three modes ensure gentle but powerful cleaning.Your advantages at a glance
- Temperature-controlled fluid & low level display
- Five different treatment programs
- Piezo scaler handpiece with LED-ring
- Three modes for reliable treatment
- Perfectly coordinated range of tips
- Thermodisinfectable & sterilizable
Comfortable patients thanks to temperature-controlled fluidUlrasonic piezo scaler Tigon+
Comfortable patients thanks to temperature-controlled fluid
The piezo scaler Tigon+ treats your patients with pleasantly warm fluid, – thereby preventing irritation even of sensitive teeth and gums. The heater can be set to three levels or turned off at the easy-to-operate display.
Perfectly coordinated
range of tipsUlrasonic piezo scaler Tigon+
Perfectly coordinated range of tipsThe extensive W&H range of tips was developed in close collaboration with dentists and professors. The high-quality tips, which can be easily inserted and removed using the W&H tip changer, cover the areas of prophylaxis, periodontology, endodontics, implantology and restoration. The Piezo scaler Tigon+ comes with two tip sets.
Each tip comes with a tip changer. The tip changer is thermo washer disinfectable and sterilizable.
Piezo scaler handpiece
with ring of 5 LEDsTigon+
Piezo scaler handpiece with ring of 5 LEDsThe ring of 5 LEDs ensures consistently optimal illumination of the treatment site and provides you with improved viewing conditions, revealing the exact tooth colour as well as contrasts as seen in natural daylight.
![Tigon+]( "Tigon+")
Tigon+
For removing supragingival plaque and subgingival concretions, as well as for endodontic applications and for preparing dental enamel.
PA-123
REF 13931000Piezo scaler Tigon+ 220 – 240 V
PA-115
REF 13931001Piezo scaler Tigon+ 110 – 130 V
Download Area
FAQ
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Videos & Tutorials
Downloads
-
Tigon+
Type: PA-123 PA-115 Mains voltage: 220 – 240 V 110 – 130 V Nominal current: 0.1 – 1.6 A 0.1 – 2.5 A Permissible voltage fluctuation: +/- 10% Frequency: 27 – 32 KHz Max. power output to the handpiece
with load (ultrasound):10 W Length of handpiece cable: 1.8 m Dimensions in mm (w x d x h): 276.5 x 300 x 178 Suitable for foot control: C-NF / S-N1 Weight: 3.9 kg
