Endea

Contra-angles specially for nickel-titanium files

The Endea contra-angles guarantee the best possible access to the treatment site and have been specially designed for efficient working with highly elastic nickel-titanium files.

Endodontics

Endodontics

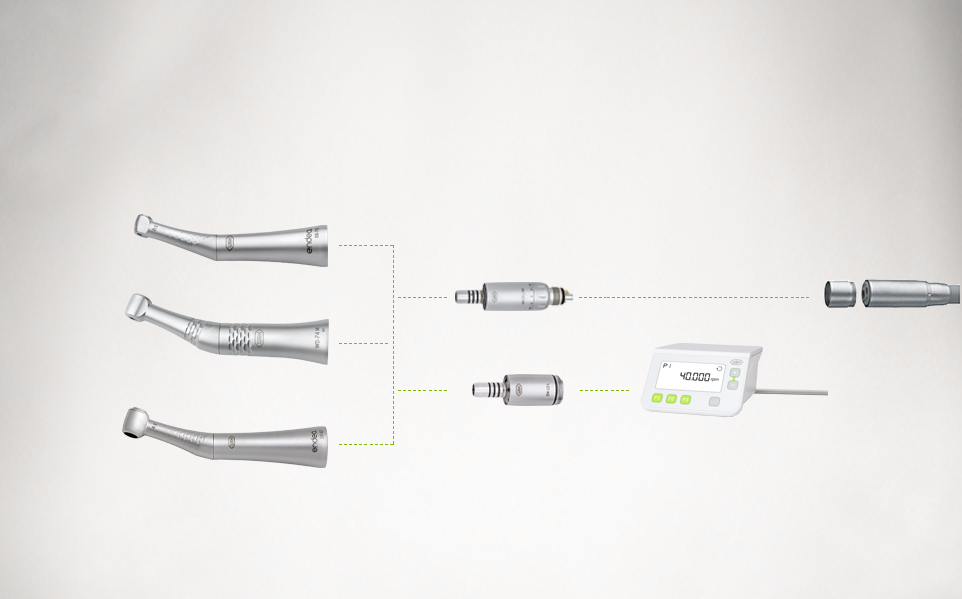

System Overview

* Currently not available in North America

  • Endea Contra-angle

    Versatile, precise and practical

    Whether using an electric, an air or a torque-controlled motor, the Endea contra-angle EB-75 (16:1) enables all commercially available files to reach the required speeds.

    Your advantages at a glance

    • Small head for best possible access to the treatment site
    • Hygienically perfect, easy to use with non-slip handle
    • Fully ball bearing mounted for precise transmission of speed to the file
    • Thermo washer disinfectable and sterilizable
    Extremely small head

    Extremely small head



    Endea, with its extremely small head, offers even better access to the treatment site.

    Head size diameter: 8.3 mm
    Head height: 9.3 mm


    Shortened file shafts
    The shortened file shafts reduce the overall working height and simplify access, particularly to the posterior region of the oral cavity.
    Nickel-titanium files

    Root canal preparation




    Precise, fast and efficient preparation of the root canal with 360° rotation.

    Endea*

    Coupling system: Motors with ISO connection
    according to ISO 3964 (DIN 13.940)
    Connection diameter: 20 mm

    EB-75
    REF 12227501

    Contra-angle 16:1,
    for motor speed up to 5,000 min-1,
    shaft diameter 2.35 mm (type 1)
    according to EN ISO 1797-1:1995

    EB-79
    REF 12227901

    Contra-angle 2:1,
    for motor speed up to 600 min-1,
    shaft diameter 2.35 mm (type 1)
    according to EN ISO 1797-1:1995


    * Recommended root canal instruments according to EN ISO 1797-1:1995:
    Nickel-titanium files, suitable for 360° rotation, shaft diameter 2.35 mm (type 1)



  • Endea

    Type: EB-75 EB-79
    Transmission ratio: 16:1 2:1
    Recommended root canal instrument´s
    according to EN ISO 1797-1:1995:
    Nickel-titanium files, suitable for 360° rotation,
    shaft diameter 2.35 mm (type 1)
    Connection diameter: 20 mm
    Coupling system: Motors with ISO connection according to ISO 3964 (DIN 13.940)
