Proxeo Ultra

The new Piezo Scalers from W&H

The new Proxeo Ultra Piezo Scalers from W&H were developed in collaboration with prophylaxis professionals and really live up to their name. Exclusive user advantages such as »Q-Link«, the only quick connection system of its kind in the world, and the verified compatibility with pacemakers allow ultraefficient treatment.

German Design Award:
Proxeo Ultra was honored as one of the Product Innovations 2020 in the German Design Awards. Proxeo Ultra's high-quality product and communication design were assessed and the Ultra deemed to be one of the defining products in the current international product and design landscape.

Prophylaxis & Periodontology

Prophylaxis & Periodontology

System Overview

* Multiflex® is a trademark of a third party not affiliated with W&H Dentalwerk Bürmoos GmbH

Proxeo Ultra

The new Piezo Scalers from W&H

  • Ultra large tank

    The Proxeo Ultra tank has a capacity of 750 ml, making it one of the largest on the market. It fits perfectly into the overall design and can be filled conveniently and cleaned easily thanks to its special shape and wide opening.

  • Ultra smooth surfaces

    The edge-free design and smooth surfaces allow you to wipe disinfect the Proxeo Ultra with ease.

  • Ultra ergonomic handpiece

    Slender design and ultra flexible hose for simple adaptation, perfect balance and even greater user comfort.

  • Ultra smooth power setting

    The rotary dial makes setting the basic mode particularly comfortable. In addition, the Proxeo Ultra PB-530 also offers a smooth mode for particularly gentle supportive periodontitis treatment.

  • 1 Ultra large tank

    Ultra large tank

    The Proxeo Ultra tank has a capacity of 750 ml, making it one of the largest on the market. It fits perfectly into the overall design and can be filled conveniently and cleaned easily thanks to its special shape and wide opening.

  • 2 Ultra smooth surfaces

    Ultra smooth surfaces

    The edge-free design and smooth surfaces allow you to wipe disinfect the Proxeo Ultra with ease.

  • 3 Ultra ergonomic handpiece

    Ultra ergonomic handpiece

    Slender design and ultra flexible hose for simple adaptation, perfect balance and even greater user comfort.

  • 4 Ultra smooth power setting

    Ultra smooth power setting

    The rotary dial makes setting the basic mode particularly comfortable. In addition, the Proxeo Ultra PB-530 also offers a smooth mode for particularly gentle supportive periodontitis treatment.

    • Ultra rapid
      changing of tips

      The new handpiece of the Proxeo Ultra Piezo
      Scalers comes with its own proprietary and
      patented quick connection system.


      The tip is screwed on and off with
      just one turn, making changing the tips
      not only quicker, but also much easier.

    • Ultra safe feeling

      Increased safety for every patient

      W&H is the first manufacturer to confirm that Piezo
      Scalers can be used on patients with pacemakers
      without any concerns.

      With an independent expert opinion from Graz
      University of Technology, users can now rest assured
      that prophylaxis treatment of patients with
      pacemakers is safe.


      Prophy for Professionals

      Ultra as in ultra brilliant

      Scaling can be so easy:
      in combination with the wireless foot
      control, the ergonomic, light handpieces
      ensure perfect handling and the ultimate
      flexibility in every treatment.

      Main advantages at a glance

      • Q-Link quick connection system
      • Compatibility with pacemakers tested by Graz University of Technology
      • Handpiece with LED ring
      • Thin, flexible hose
      • Wireless foot control
      • Automatic fill level detection
      • Infinitely adjustable power setting
      • Perfectly coordinated tip range
      • Large tank (750 ml)
      • Special cleaning program for reprocessing hose systems
      • Ultra flexible

        Ultra flexible freedom of movement

        Changing position is easier than ever before. Position the wireless foot control for the PB-530 wherever it suits you best – no more annoying cords!

      • Ultra large

        Ultra large tank

        The Proxeo Ultra tank (PB-520 & PB-530) has a capacity of 750 ml, making it one of the largest on the market. It fits perfectly into the overall design and can be filled conveniently and cleaned easily thanks to its special shape and wide opening.

      • Ultra smooth

        Ultra smooth surfaces

        The edge-free design and smooth surfaces allow you to wipe disinfect the Proxeo Ultra with ease.

      • Ultra practical

        Ultra practical fill level detection

        The Proxeo Ultra PB-530 warns you in good time when the water is running low. This allows you to integrate the refilling into your workflow conveniently.

      • Ultra bright

        Ultra bright illumination

        The LED ring lights up the treatment site with daylight-quality illumination.

      • Ultra ergonomic

        Ultra ergonomic handpiece

        Slender design and ultra flexible hose for simple adaptation, perfect balance and even greater user comfort.

      • Ultra smooth

        Ultra smooth power setting

        The rotary dial makes setting the basic mode particularly easy.


        The dentists and hygienists played a key role in this product. From the requirements to the design to the simplicity of use, the product clearly satisfies the users’ needs.

        Bernhard Eder
        Product portfolio manager W&H, Bürmoos

        The Proxeo Ultra Piezo Scaler really lives up to its name. It allows ultra rapid changing of the tips, has an ultra ergonomic handpiece and is ultra flexible in its use, ultra simple to handle and ultra versatile in treatment. In addition, it also looks ultra great!

        Fanny Bretschneider
        Dental hygienist, Salzburg

        • One control unit – two devices

          The new W&H prophylaxis solution presents itself as convenient, wireless and efficient. From now on, the PB-530 Proxeo Ultra Piezo scaler and the wireless PL-40 H Proxeo Twist Polishing System can be controlled using just a single wireless foot control. This not only makes it more convenient to operate, but also ensures more efficiency in working process.

          More info.


          Proxeo Ultra Systems

          PB-530

          › Q-Link quick connection system
          › Compatibility with pacemakers
          tested by Graz University of
          Technology
          › Handpiece with LED ring
          › Thin, flexible hose
          › Wireless foot control
          › Automatic fill level detection
          › Infinitely adjustable power setting
          › Perfectly coordinated tip range
          › Large tank (750 ml)
          › Special cleaning program for
          reprocessing hose systems

          PB-530
          REF 90000258

          PB-5 L Q handpiece

          PB-530
          REF 90000257

          PB-5 L handpiece

          PB-530
          REF 90000297

          PB-5 L S handpiece


          PB-520

          › Q-Link quick connection system
          › Compatibility with pacemakers
          tested by Graz University of
          Technology
          › Handpiece with LED ring
          › Thin, flexible hose
          › Infinitely adjustable power setting
          › Perfectly coordinated tip range
          › Large tank (750 ml)

          PB-520
          REF 90000256

          PB-5 L Q handpiece

          PB-520
          REF 90000255

          PB-5 L handpiece

          PB-520
          REF 90000296

          PB-5 L S handpiece


          PB-510

          › Q-Link quick connection system
          › Compatibility with pacemakers
          tested by Graz University of
          Technology
          › Handpiece with LED ring
          › Thin, flexible hose
          › Infinitely adjustable power setting
          › Perfectly coordinated tip range

          PB-510
          REF 90000254

          PB-5 L Q handpiece

          PB-510
          REF 90000253

          PB-5 L handpiece

          PB-510
          REF 90000295

          PB-5 L S handpiece


          Built-In Piezo Scaler

          Selected unit manufacturers
          offer W&H Piezo Scalers as an
          integrated drive solution as part of
          the complete system. They can be
          controlled simply and conveniently
          via your dental unit’s control panel.
          Ask W&H or your unit manufacturer
          about W&H Piezo Scalers as a Built-in Solution.

          Built-In Piezo Scaler
          REF 90000252

          PB-5 L Q handpiece

          Built-In Piezo Scaler
          REF 90000251

          PB-5 L handpiece

          Built-In Piezo Scaler
          REF 90000149

          PB-3 handpiece


          Proxeo Ultra Handpieces

          PB-5 L Q

          Handpieces with Q-Link quick connection system.

          PB-5 L Q
          REF 30327000


          PB-5 L

          Handpiece for W&H thread.

          PB-5 L
          REF 30326000


          PB-5 L S

          Handpiece compatible with Satelec thread - Satelec is not a W&H brand, but the brand of a third-party provider with which W&H has no connection.

          PB-5 L S
          REF 30328000


          Proxeo Combi-Set

          Proxeo Ultra & Proxeo Twist Cordless

          › PL-40 H Proxeo Twist
          › Proxeo Ultra PB-530
          › Handpiece with LED ring
          › Wireless foot control
          › Perfectly coordinated tip range

          Set PB-530, PL-40H, PB-5LQ
          REF 90000298

          Handpieces with Q-Link quick connection system.

          Set PB-530, PL-40H, PB-5L
          REF 90000299

          Handpiece for W&H thread.

          Set PB-530, PL-40H, PB-5LS
          REF 90000301

          Handpiece compatible with Satelec thread - Satelec is not a W&H brand, but the brand of a third-party provider with which W&H has no connection.


          Download Area

          Video Tutorials

          For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

          Accept
          • Built-in Solution

            Simple and convenient
            operation via your
            dental unit’s control
            panel

          • Piezo technology
            for your dental unit

            Simply to integrate

          • Piezo scaler handpieces

            > PB-5 L Q handpiece
            > PB-5 L handpiece
            > PB-3 handpiece

            • Built-in
              Solution

              Fully integrated drive solution

              Simple and convenient operation <br>via your dental unit’s control panel

            • Piezo Scaler
              Built-in Set

              Easy installation solution

              Operate the piezo scaler with the unit’s foot control, activate it using the instrument holder or control it via the control knob

            • Tailor the
              optimal power

              Control knob

              Tailor the power optimally to the intended use with the control knob


            Piezo Scaler Built-in Solution

            You have the choice

            The W&H piezo scaler can be optimally
            integrated into your personalized workflow.
            Choose a simple stand-alone solution or
            utilize the advantages of a Built-in Solution.

            Selected unit manufacturers offer the
            W&H piezo scaler as an integrated drive
            solution. It can be controlled simply and conveniently via your dental unit’s control panel.

            Your advantages at a glance

            • Easy integration into your existing dental unit
            • Convenient operation via your dental unit’s control panel or with the control knob to tailor the optimal power
            • Perfectly matched W&H tip system
            • Fast removal of calculus thanks to state-of-the-art piezo technology

            Maximum efficiency

            The piezo scaler handpiece is powerful and gentle at the same time for a minimally invasive application and painless treatment.
            State-of-the-art piezo technology improves efficiency and tactile feedback in all clinical indications.

            • Piezo Scaler Built-in Set

              Get your treatment unit ready for the future


              With the W&H Built-in Solutions, such as the PB-5 L Built-in Set analogue. The new-generation piezo scaler Built-in Solution.

              Ask W&H or your unit manufacturer about the W&H piezo scaler as a Built-in Solution.

            • Easy to use

              Optimal power adjustment


              Thanks to infinitely variable power regulation the W&H piezo scaler can be effortlessly adjusted to the particular application and tip.

              The W&H tip system is perfectly matched to the requirements of the respective application areas.

            • Piezo scaler handpieces

              Easy to clean


              The piezo scaler handpieces can be easily dismantled
              for simple and improved cleaning.

              Both piezo scaler handpieces are thermo washer
              disinfectable and sterilizable.

              • Comfortable

                High-performance
                and gentle


                The W&H ultrasonic scaler stands out for its fast removal of calculus and gentle, minimally invasive application.

                The shape of the handpiece and its light weight ensure maximum comfort.

              • Gentle application

                Effective cooling


                The integrated spray ensures constant and effective cooling of the treatment site.

                For a minimally invasive application and painless treatment.

              • Diverse range of applications

                Flexible

                From prophylaxis and periodontology to endodontics or the micro-preparation of restorations right up to implant preservation, the W&H piezo scaler boasts a diverse range of uses.

                The tip system, developed with end users, is perfectly matched to the individual treatment steps.

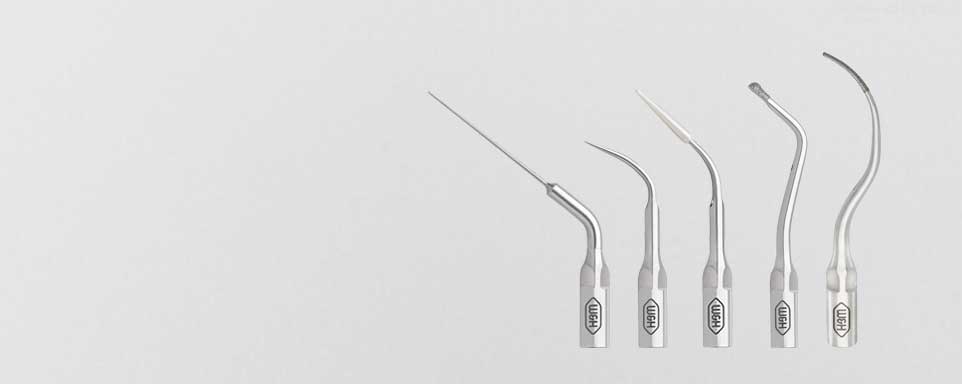

                W&H Piezo scaler tips

                Compact, organized, safe and effective.

                The tip system, developed with end users, is perfectly matched to the requirements of the respective application areas and the individual treatment steps.

                The W&H piezo scaler tip range
                includes different tips for prophylaxis, periodontology, endodontics, implantology and restoration.

                W&H Tip changer

                Thanks to the W&H tip changer, tips can easily be attached and removed. At the same time, the tip changer also serves as an ideal depository when sterilizing the tip.


                Piezo Scaler PB-5 L Q (Built-in Set)

                PB-5 L Q Built-in Set
                REF 90000252

                consists of
                > PC-1.0 Piezo Controller analogue
                > VP-5 Supply hose
                > Handpiece PB-5 L Q
                > Electrical connection set
                > Control knob
                > Tips 1UQ, 2UQ, 1PQ
                > Tip changer


                Piezo Scaler PB-5 L (Built-in Set)

                PB-5 L Built-in Set
                REF 90000251

                consists of
                > PC-1.0 Piezo Controller analogue
                > VP-5 Supply hose
                > Handpiece PB-5 L
                > Electrical connection set
                > Control knob
                > Tips 1UQ, 2UQ, 1PQ
                > Tip changer


                Piezo Scaler PB-3 (Built-in Set)

                PB-3 Built-in Set
                REF 90000149

                consists of
                > PC-1.0 Piezo Controller analogue
                > Supply hose
                > Handpiece PB-3
                > Electrical connection set
                > Control knob
                > Tip changer with tip 1U
                > Tip changer with tip 1P

              • Proxeo Ultra

                Surgical unit

                PB-530

                PB-520

                PB-510

                Mains Voltage:

                100-230 V

                Maximum output power to handpiece under load (ultrasonic):

                12 W

                Frequency (ultrasonic):

                22-35 kHz

                Operating mode:

                S3 (14 s/6 s)

                Length of handpiece cable:

                1,8 m

                Dimensions in mm (W×D×H):

                120×185×205

                120×185×110

                Weight:

                1.106 g

                1.064 g

                807 g

                Can be used with foot control:

                C-NW

                C-NF

                Foot control

                Foot control

                C-NW

                C-NF

                Weight:

                190 g

                114 g

                Dimensions in mm (W×D×H):

                117×117×38

                100×110×26,5

                Battery type:

                Li-Ion

                -

                Running time when fully charged:

                approx. 2 months

                -

                Standby:

                automatically if not actuated

                -

                Charging time:

                approx. 3 hours

                -

                Piezo Scaler handpiece

                Piezo Scaler handpiece

                PB-5 L Q

                PB-5 L

                PB-5 L S

                Light:

                LED-Ring

                Weight:

                55 g

                Length without tip:

                135 mm (with coupling)

                Diameter:

                18,5 mm

                Built-In

                Built-In Set analog

                PB-3

                PB-5 L Q/PB-5 L

                Piezo Controller:

                PC-1.0

                Electrical connection set:

                Control knob:

                Supply hose:

                VP-3 (1,8 m)

                VP-5 (1,8 m)

                Handpiece:

                PB-3

                PB-5 L Q/PB-5 L

                Tip changer with tip inserted:

                TW-1: 1U, 1P

                TQ-1: 1UQ, 2UQ, 1PQ/TW-1: 1U, 2U, 1P

                Compatibility of tips with W&H handpieces

                Q-Link*

                W&H/EMS/Mectron

                W&H/NSK/Satelec**

                PB-5 L Q

                PB-5 L

                PA-1 LED

                PB-3

                PB-5 L S

                PB-3 LED S

                PB-3 S

                Tigon+

                X

                X

                Proxeo Ultra

                X

                X

                X

                Pyon 2

                X

                Built-In

                X

                X

                X

                X

                X

                * Q-Link tips (e.g., 1UQ, 2UQ) are compatible with the PB-5 L Q.
                ** W&H tips with Satelec thread (e.g., 1US, 2US) are compatible with the W&H handpieces PB-5 L S, PB-3 LED S and PB-3 S.
                Note: EMS®, Mectron®, NSK® and Satelec® are trademarks of third parties not affiliated with W&H Dentalwerk Bürmoos GmbH. When using tips from other manufacturers, the user is responsible for ensuring the W&H piezo device´s performance parameters are set correctly.
